FEATURES
Cutting surface areas range from 100mm x 100mm of the ESC series to the 1200mm x 80mm of the EKC1200 series, with varying designs to fit different cutting requirements.
Specifications for the ESC Series Are:
- Max. Cutting Speed: 20 times / min
- Cutting Tolerance: +/- 1mm
- Cutting Verticality: 0.3/100mm
- Blade Speed: 3400 rpm
Specifications for the EFC Series Are:
- Max. Cutting Speed: 35 times / min
- Cutting Tolerance: +/- 0.2mm
- Cutting Verticality: 0.3/100mm
- Blade Speed: 3400 rpm

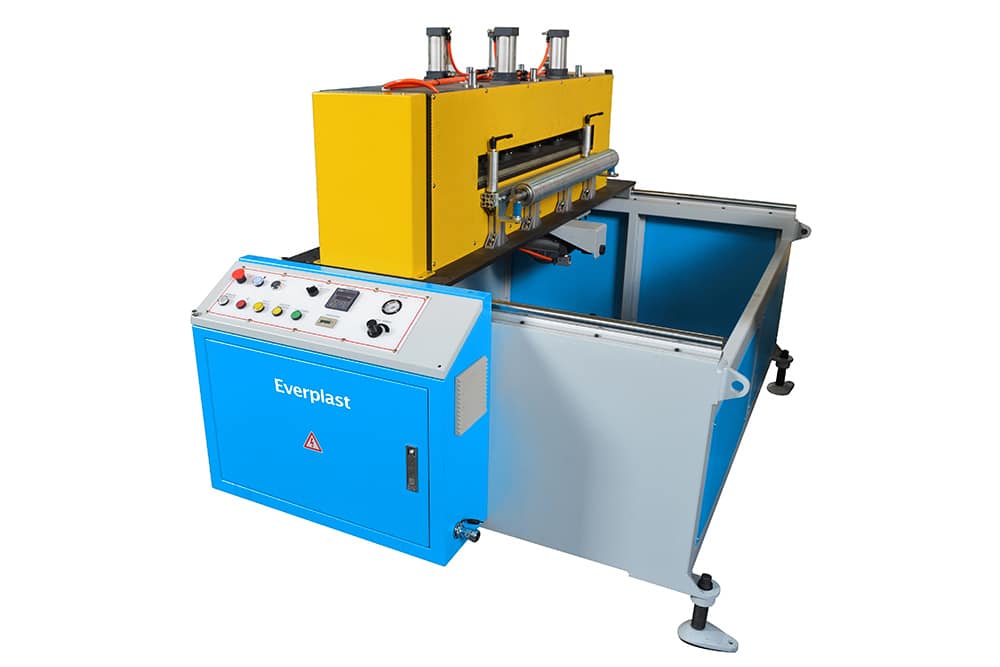

Specifications for the EKC Series Are:
- Cutting Tolerance: +/- 0.2mm
- Max. Work Area: (H)80mm x (W)1200mm
SHOWCASE
